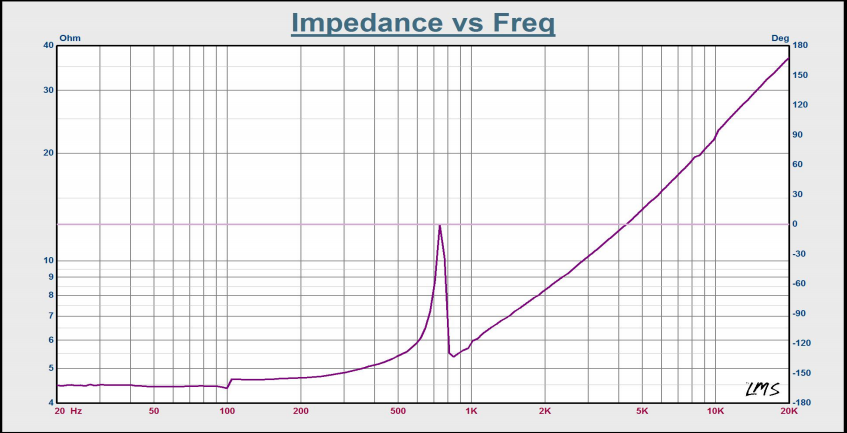

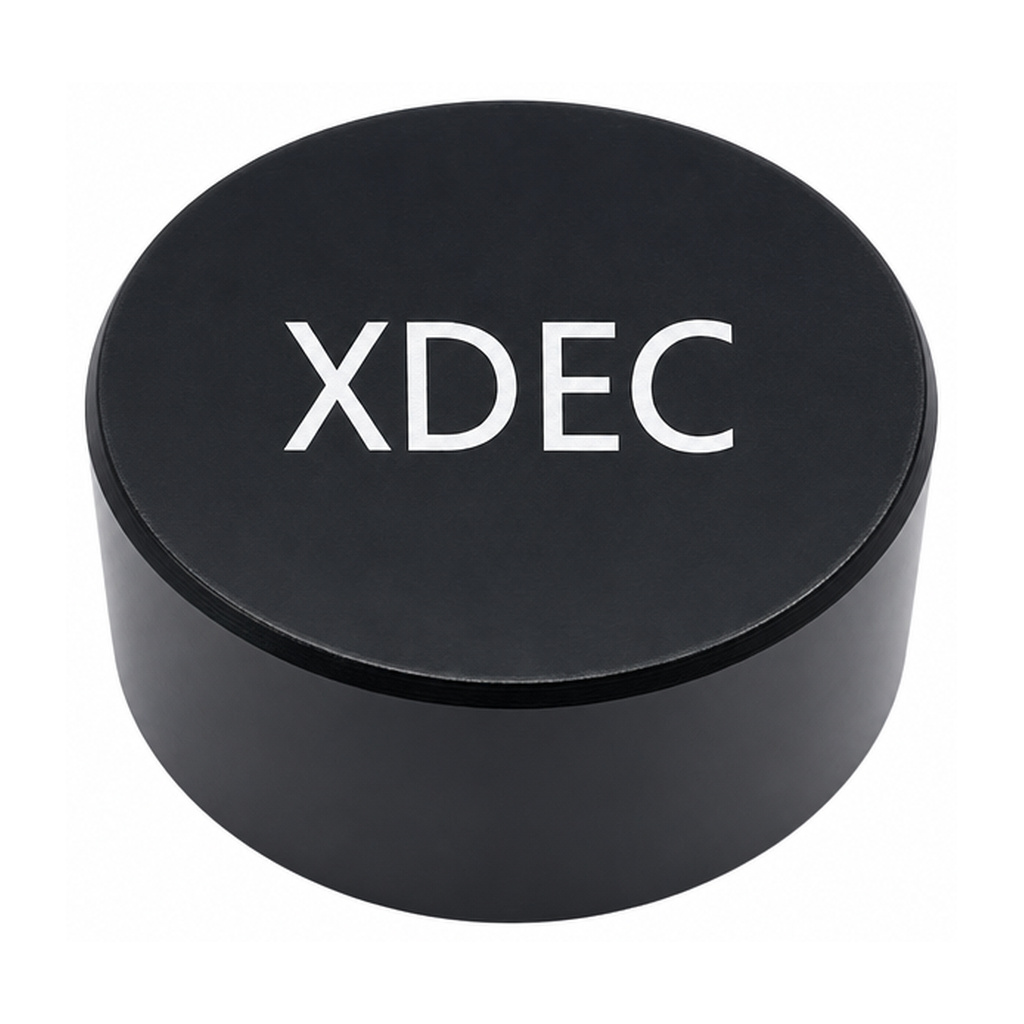

OverviewBackDimensionsFrequency Curve
EXCITERS
XDEC-50Z04T21NC15
Vibration exciter, 50×22.0H mm, 4Ω 50W/60W, F0 740Hz±20%. Typical applications: Medical Device, Interactive Panel, Simulator Seat. XDEC (Shenzhen, est. 2009) — OEM/ODM cu…
4ΩRated Impedance
50W/60WPower
—SPL
740HzF0
Rated Impedance4Ω
Rated / Max Power50W/60W
SPL—
Resonance F0740Hz±20%
Frequency RangeF0~20K

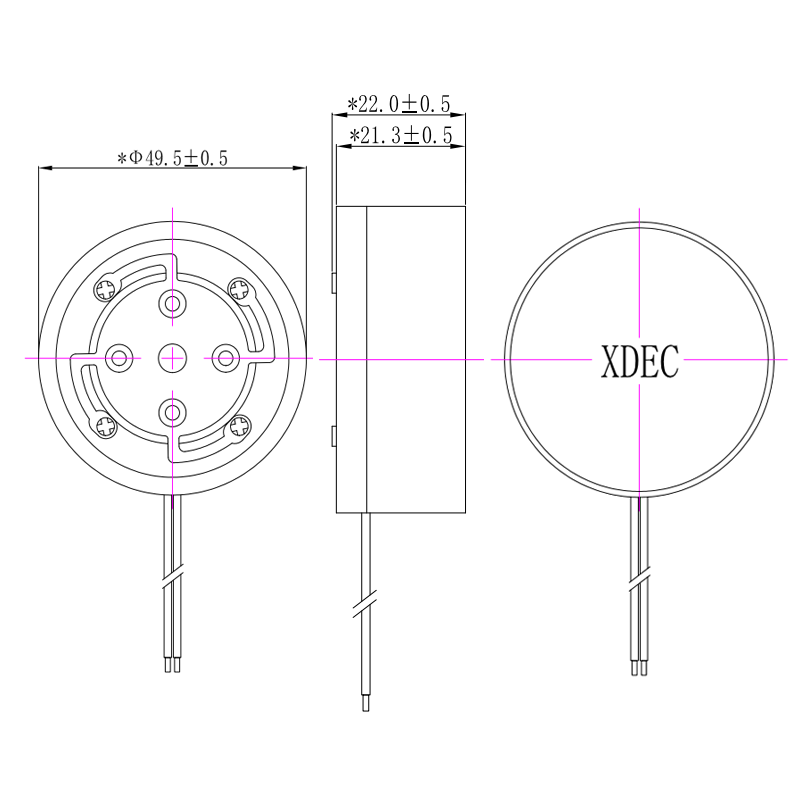

Dimensions50×22.0H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Medical DeviceInteractive PanelSimulator Seat
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
