MULTIMEDIA SPEAKERS
XDEC-23Y08J22NF09B-D50
Multimedia speaker driver, 23×12H mm, 8Ω 2W/2.5W, sensitivity 81±3dB, F0 700HZ. Typical applications: Smart Speakers, Desktop Speakers, Portable Audio. XDEC (Shenzhen, es…
8ΩRated Impedance
2W/2.5WPower
81±3dBSPL
700HZF0
Rated Impedance8Ω
Rated / Max Power2W/2.5W
SPL81±3dB (0.5W/0.5m)
Resonance F0700HZ
Frequency RangeF0~20KHZ

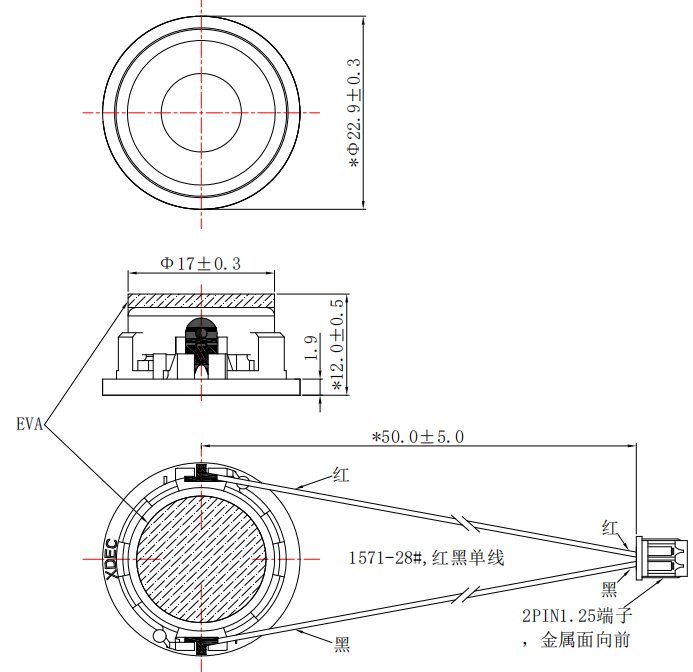

Dimensions23×12H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Smart SpeakersDesktop SpeakersPortable Audio
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
