MULTIMEDIA SPEAKERS
XDEC-36Y08T17ND22
Multimedia speaker driver, 36×14.5H mm, 8Ω 2W/3W, sensitivity 74±3dB(0.5W/0.5M), F0 240±20%Hz. Typical applications: Desktop Speaker, TV Speaker, Bluetooth Speaker. XDEC …
8ΩRated Impedance
2W/3WPower
74±3dB(0.5W/0.5M)SPL
240HzF0
Rated Impedance8Ω
Rated / Max Power2W/3W
SPL74±3dB(0.5W/0.5M)
Resonance F0240±20%Hz

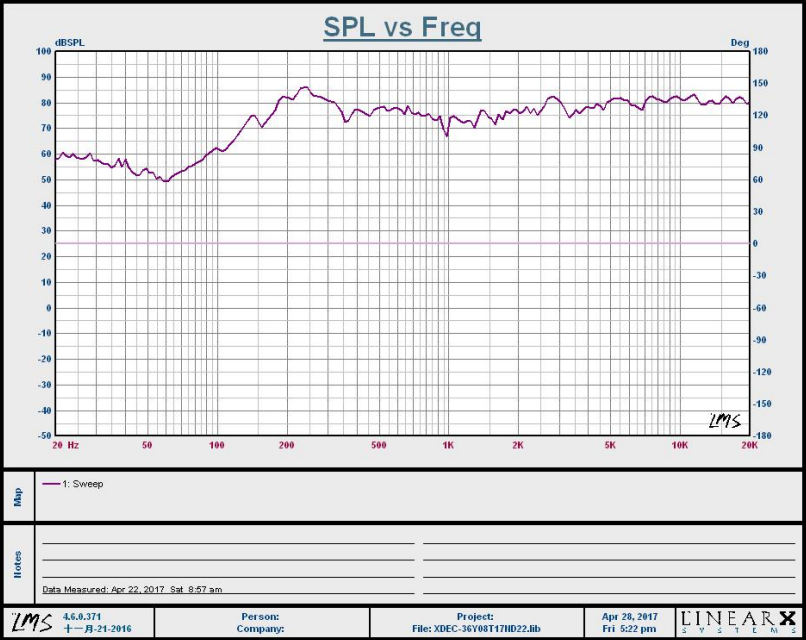

Frequency RangeF0~20K

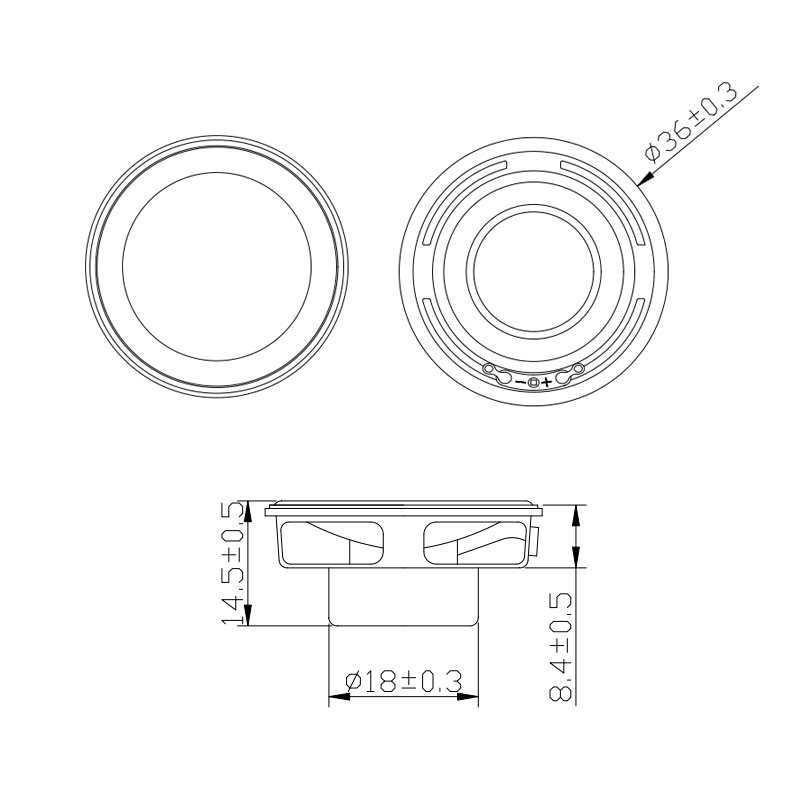

Dimensions36×14.5H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Desktop SpeakerTV SpeakerBluetooth Speaker
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
