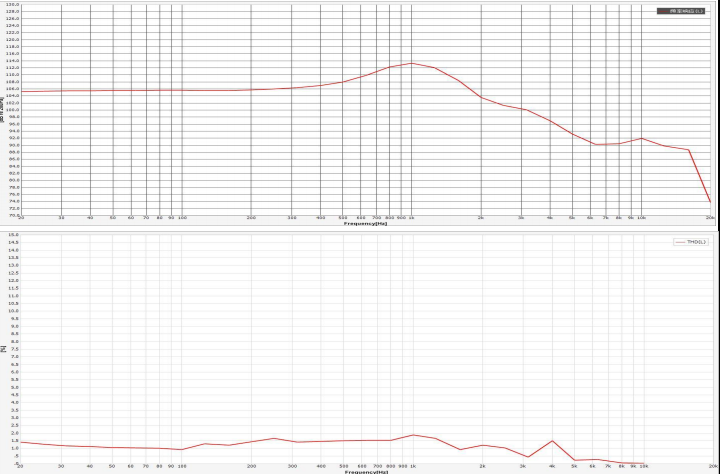

OverviewBackDimensionsFrequency Curve
HEADPHONE DRIVERS
XDEC-40E32J23NK22A
Earphone speaker driver, 40×10.5H mm, 32Ω 30mW/40mW, sensitivity 108±3dB, F0 120Hz±20%. Typical applications: Helmet Headset, Hearing Aid Device, Studio Monitor Headphone…
32ΩRated Impedance
30mW/40mWPower
108±3dBSPL
120HzF0
Rated Impedance32Ω
Rated / Max Power30mW/40mW
SPL108±3dB (0.1W/0.1m)
Resonance F0120Hz±20%
Frequency RangeF0~6kHz

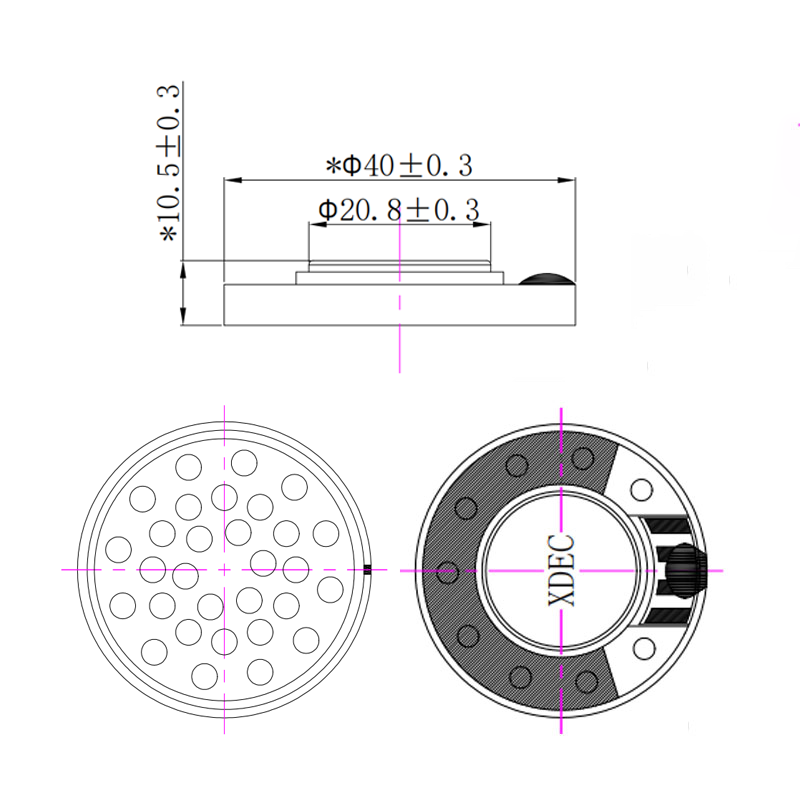

Dimensions40×10.5H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Helmet HeadsetHearing Aid DeviceStudio Monitor Headphone
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
