HEADPHONE DRIVERS
XDEC-57E100J17NK14
Earphone speaker driver, 57×10.4H mm, 100Ω 30mW/50mW, sensitivity 123±3dB(0.01W/0.01M), F0 ±20%Hz. Typical applications: Hearing Aid Device, Studio Monitor Headphone, Wir…
100ΩRated Impedance
30mW/50mWPower
123±3dB(0.01W/0.01M)SPL
HzF0
Rated Impedance100Ω
Rated / Max Power30mW/50mW
SPL123±3dB(0.01W/0.01M) (0.1W/0.1m)
Resonance F0±20%Hz

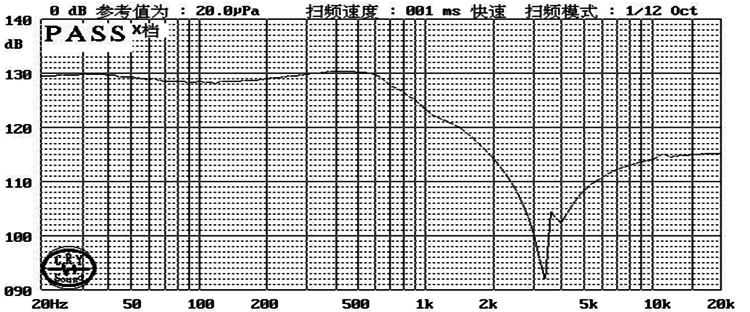

Frequency RangeF0~20K

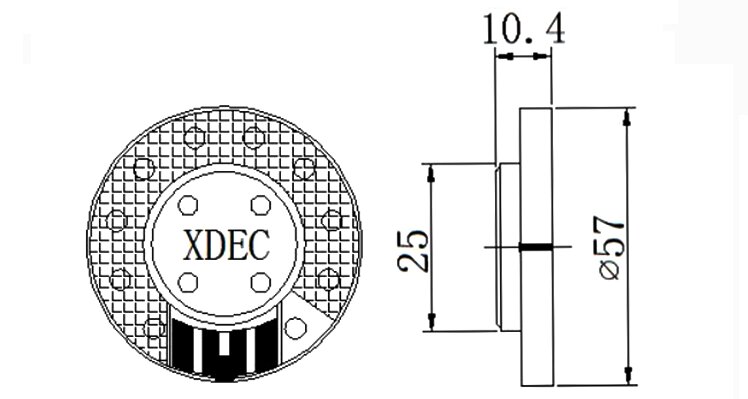

Dimensions57×10.4H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Hearing Aid DeviceStudio Monitor HeadphoneWired Earphone
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
