MULTIMEDIA SPEAKERS
XDEC-50Y04T17NC22
Multimedia speaker driver, 68×50×17.5H mm, 4Ω 5W/7W, sensitivity 85±3dB, F0 360Hz±15%. Typical applications: Bluetooth Speaker, Smart Speaker, Car Audio. XDEC (Shenzhen, …
4ΩRated Impedance
5W/7WPower
85±3dBSPL
360Hz±15%F0
Rated Impedance4Ω
Rated / Max Power5W/7W
SPL85±3dB (0.5W/0.5m)
Resonance F0360Hz±15%

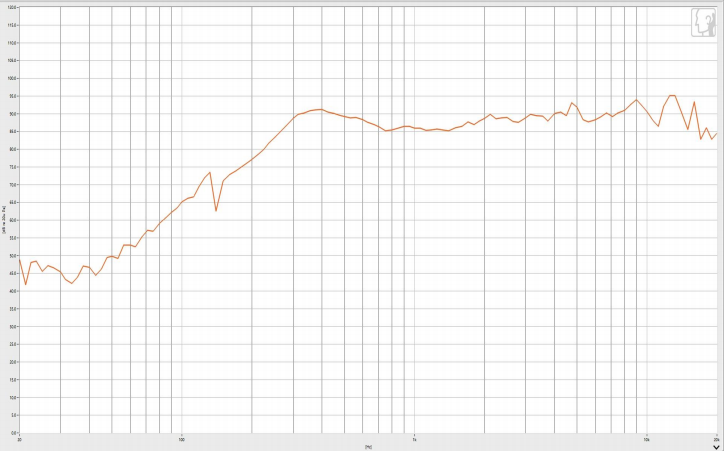

Frequency RangeF0~16kHz

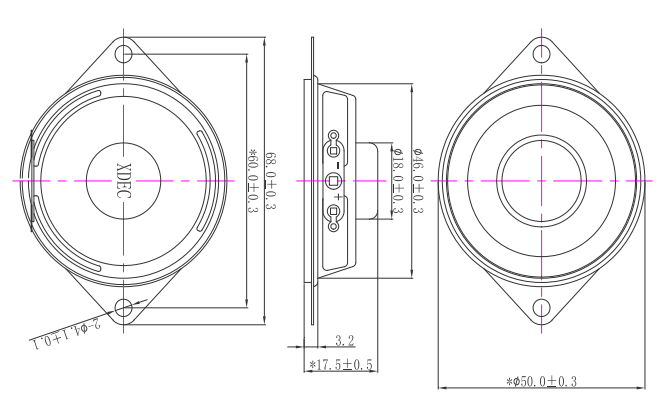

Dimensions68×50×17.5H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Bluetooth SpeakerSmart SpeakerCar Audio
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
