MULTIMEDIA SPEAKERS
XDEC-5393Y04T24NC07
Multimedia speaker driver, 53×93×51.5H mm, 4Ω 30W/42W, sensitivity 87 ±3dB, F0 110Hz±20%. Typical applications: TV Speaker, Bluetooth Speaker, Smart Speaker. XDEC (Shenzh…
4ΩRated Impedance
30W/42WPower
87 ±3dBSPL
110HzF0
Rated Impedance4Ω
Rated / Max Power30W/42W
SPL87 ±3dB (0.5W/0.5m)
Resonance F0110Hz±20%
Frequency RangeF0~13kHz

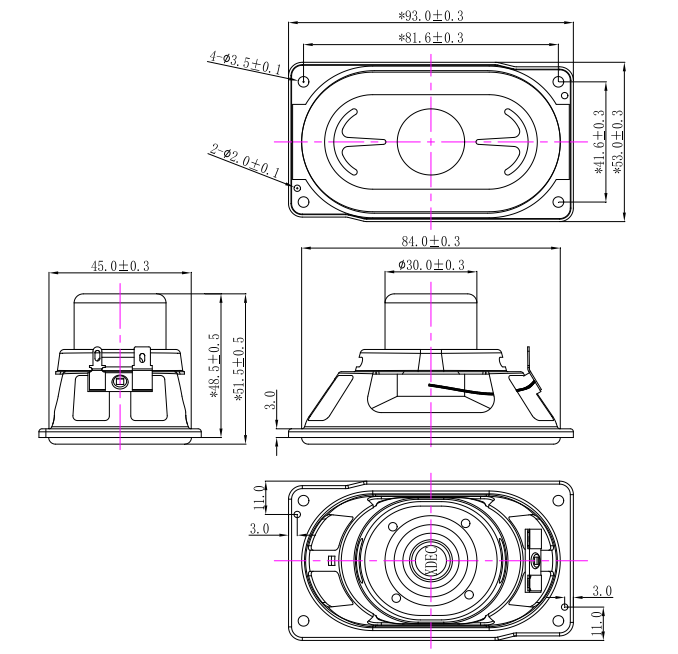

Dimensions53×93×51.5H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
TV SpeakerBluetooth SpeakerSmart Speaker
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
