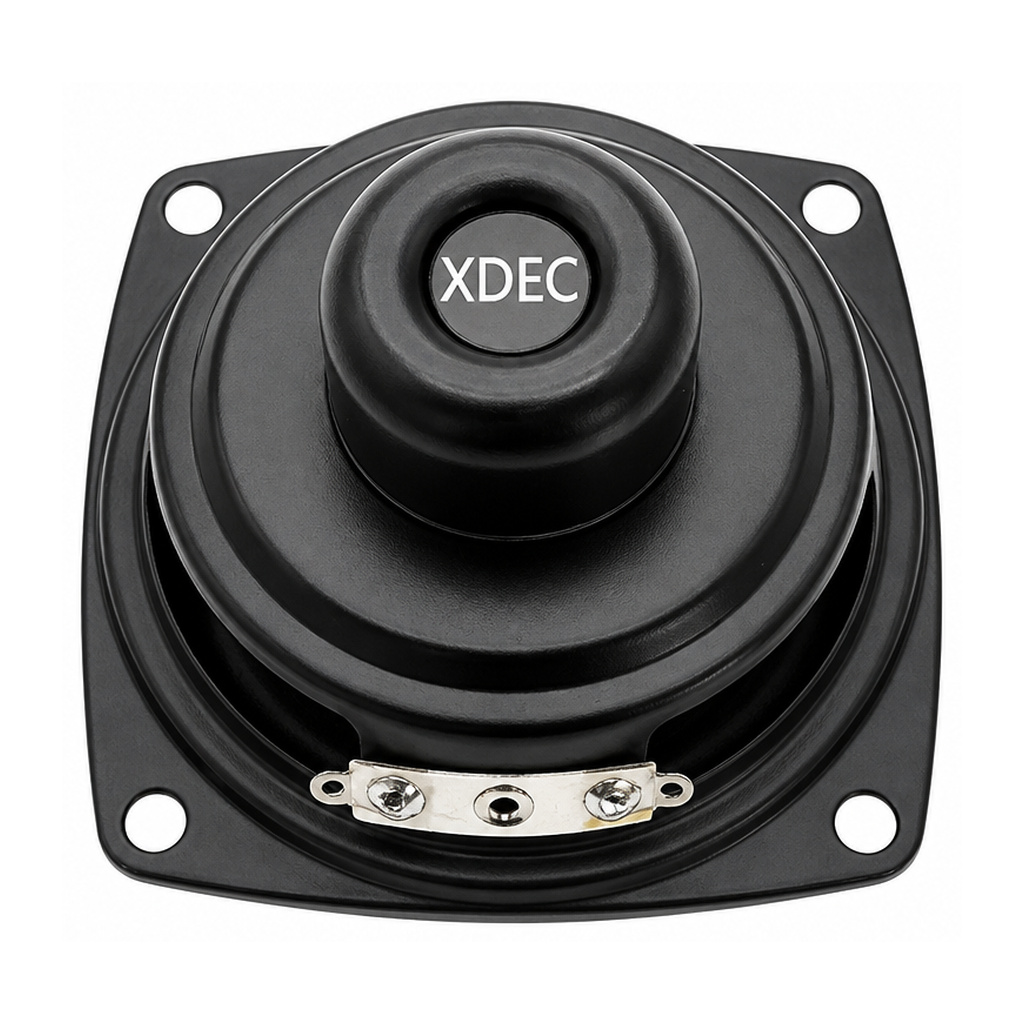

OverviewBackDimensionsFrequency Curve
MULTIMEDIA SPEAKERS
XDEC-57Y04T22NK28
Multimedia speaker driver, 57×57×29.2H mm, 4Ω 5W/6W, sensitivity 84 ±3dB, F0 130Hz±20%. Typical applications: Conference Speakerphone, Portable Audio, Desktop Speaker. XD…
4ΩRated Impedance
5W/6WPower
84 ±3dBSPL
130HzF0
Rated Impedance4Ω
Rated / Max Power5W/6W
SPL84 ±3dB (0.5W/0.5m)
Resonance F0130Hz±20%
Frequency RangeF0~20kHz

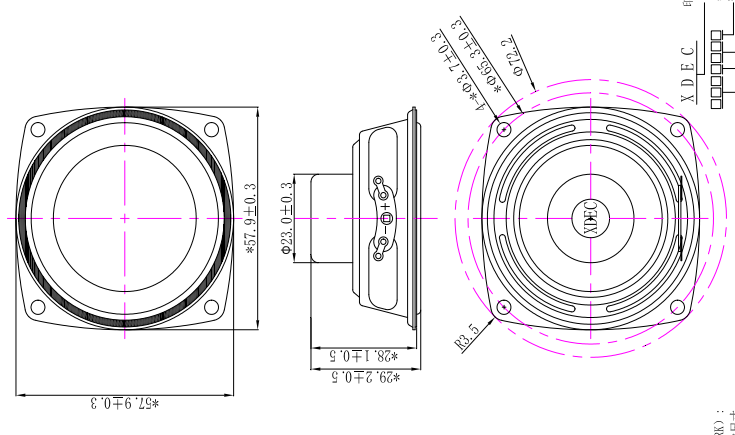

Dimensions57×57×29.2H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Conference SpeakerphonePortable AudioDesktop Speaker
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
