MULTIMEDIA SPEAKERS
XDEC-77Y06T23NK08
Multimedia speaker driver, 76×76×24.5H mm, 6Ω 15W/20W, sensitivity 86±3dB, F0 65Hz±15%. Typical applications: Desktop Speaker, TV Speaker, Bluetooth Speaker. XDEC (Shenzh…
6ΩRated Impedance
15W/20WPower
86±3dBSPL
65Hz±15%F0
Rated Impedance6Ω
Rated / Max Power15W/20W
SPL86±3dB (0.5W/0.5m)
Resonance F065Hz±15%

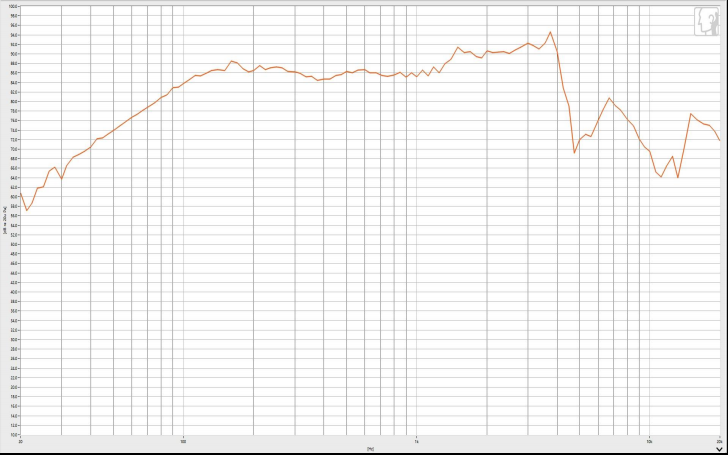

Frequency RangeF0~4kHz

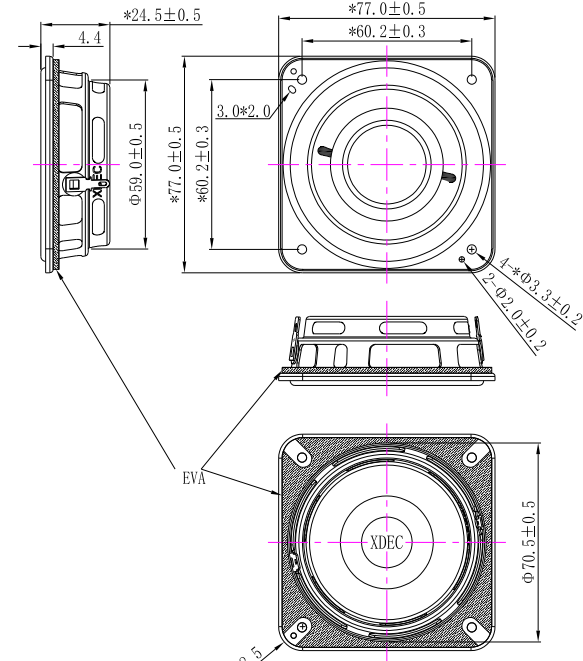

Dimensions76×76×24.5H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Desktop SpeakerTV SpeakerBluetooth Speaker
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
