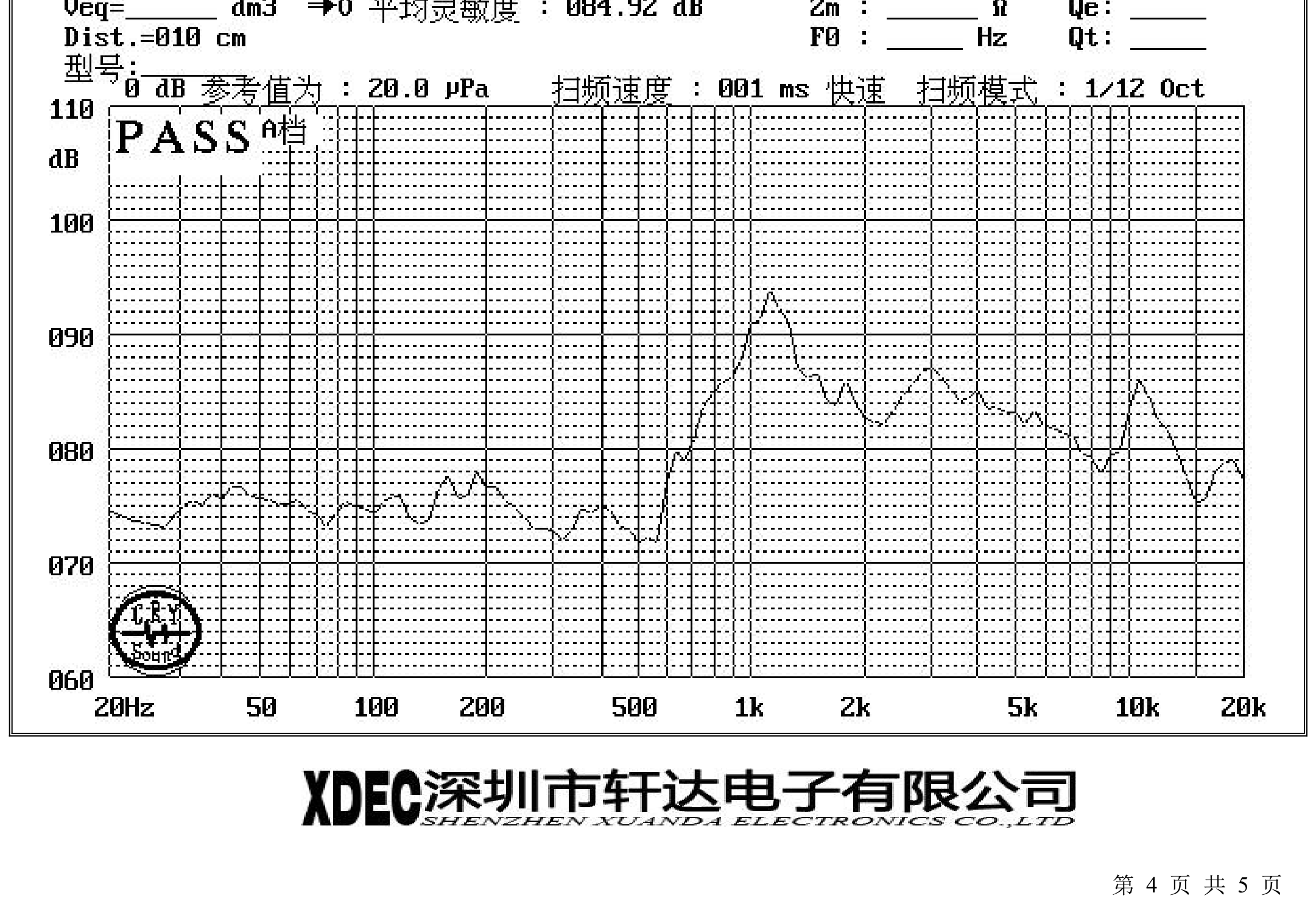

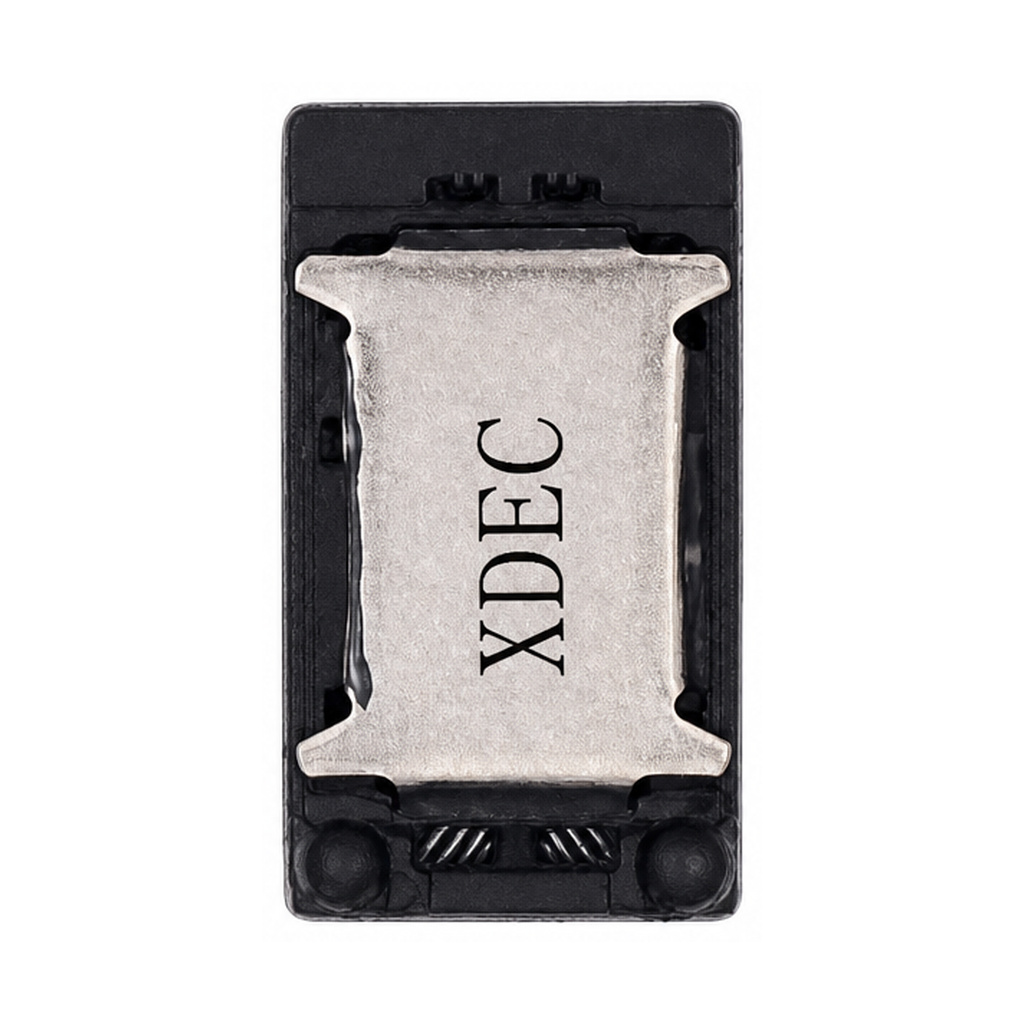

OverviewBackDimensionsFrequency Curve
MICRO SPEAKERS
XDEC-1609B07J17NC18-D50
Micro speaker driver, 16×9×3.5H mm, 8Ω 1W/1.5W, sensitivity 90±3dB, F0 1120Hz±20%. Typical applications: Ultra-thin Device, Portable Terminal, E-reader. XDEC (Shenzhen, e…
8ΩRated Impedance
1W/1.5WPower
90±3dBSPL
1120HzF0
Rated Impedance8Ω
Rated / Max Power1W/1.5W
SPL90±3dB (0.1W/0.1m)
Resonance F01120Hz±20%
Frequency RangeF0~20kHz

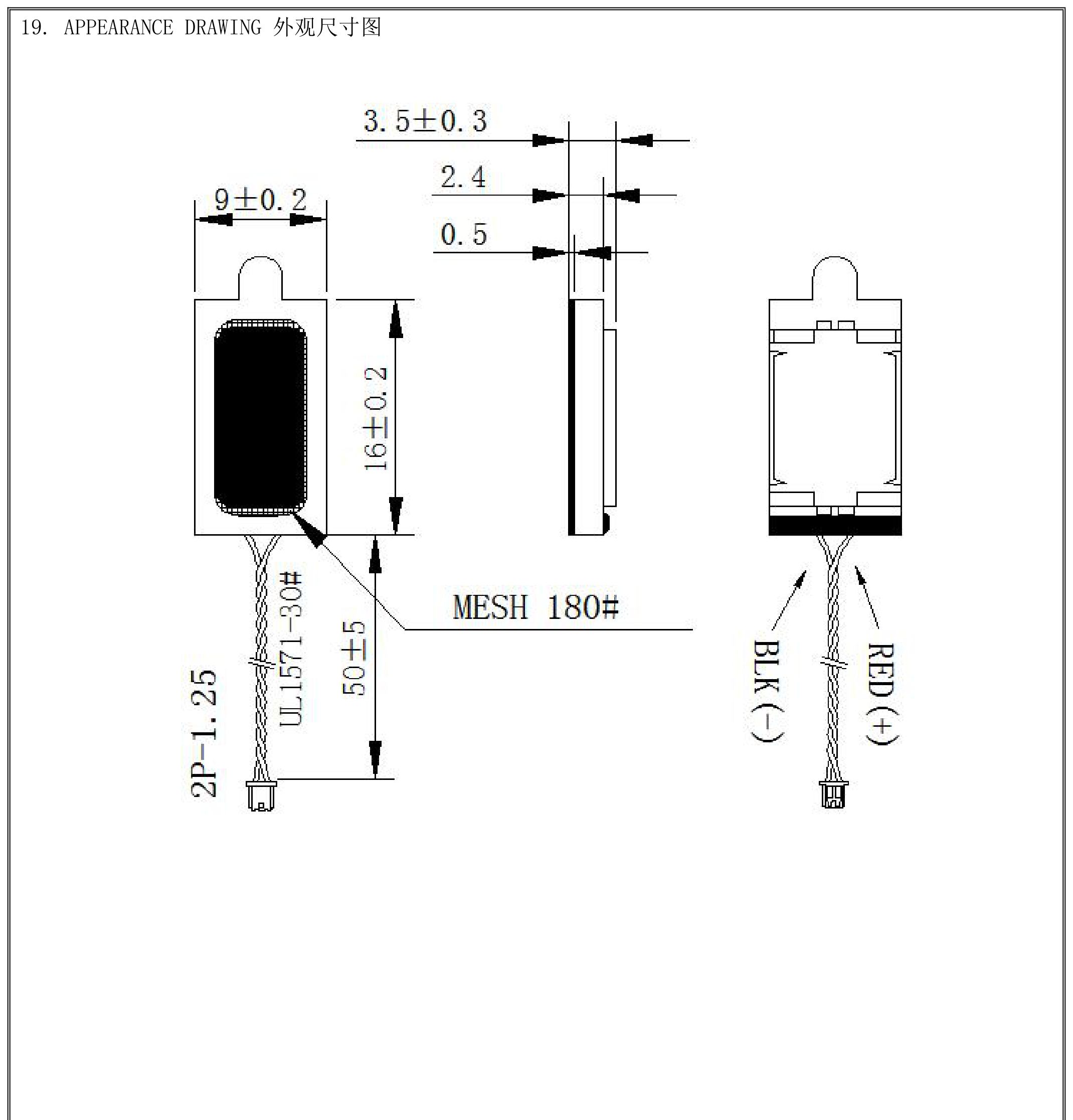

Dimensions16×9×3.5H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Ultra-thin DevicePortable TerminalE-reader
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
