MICRO SPEAKERS
XDEC-2415B08J15NC02-L45
Micro speaker driver, 24×15×4.2H mm, 8Ω 1W/1.5W, sensitivity 90±3dB, F0 710Hz±20%. Typical applications: E-reader, Handheld Device, Slim Display. XDEC (Shenzhen, est. 200…
8ΩRated Impedance
1W/1.5WPower
90±3dBSPL
710HzF0
Rated Impedance8Ω
Rated / Max Power1W/1.5W
SPL90±3dB (0.1W/0.1m)
Resonance F0710Hz±20%

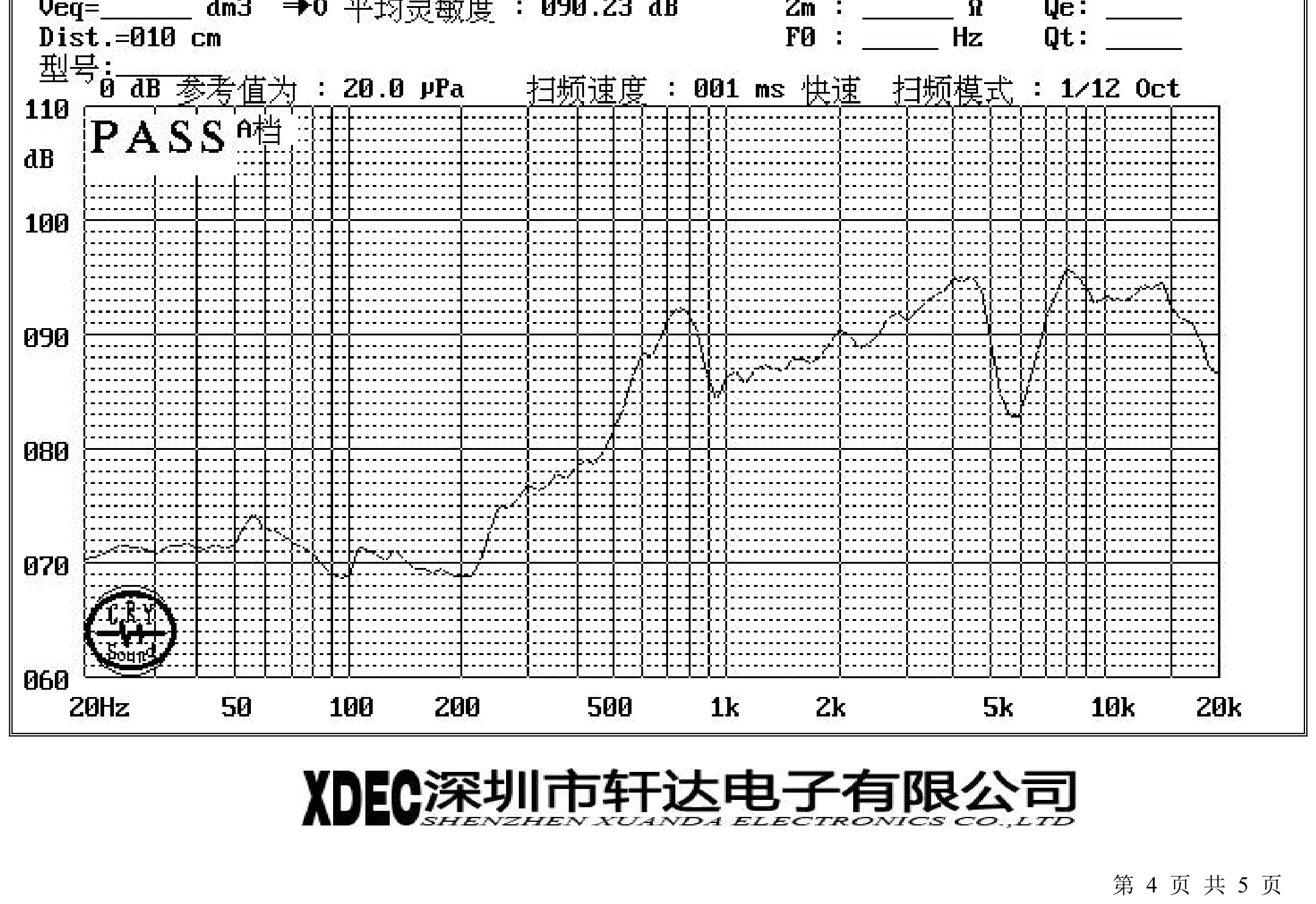

Frequency RangeF0~20kHz

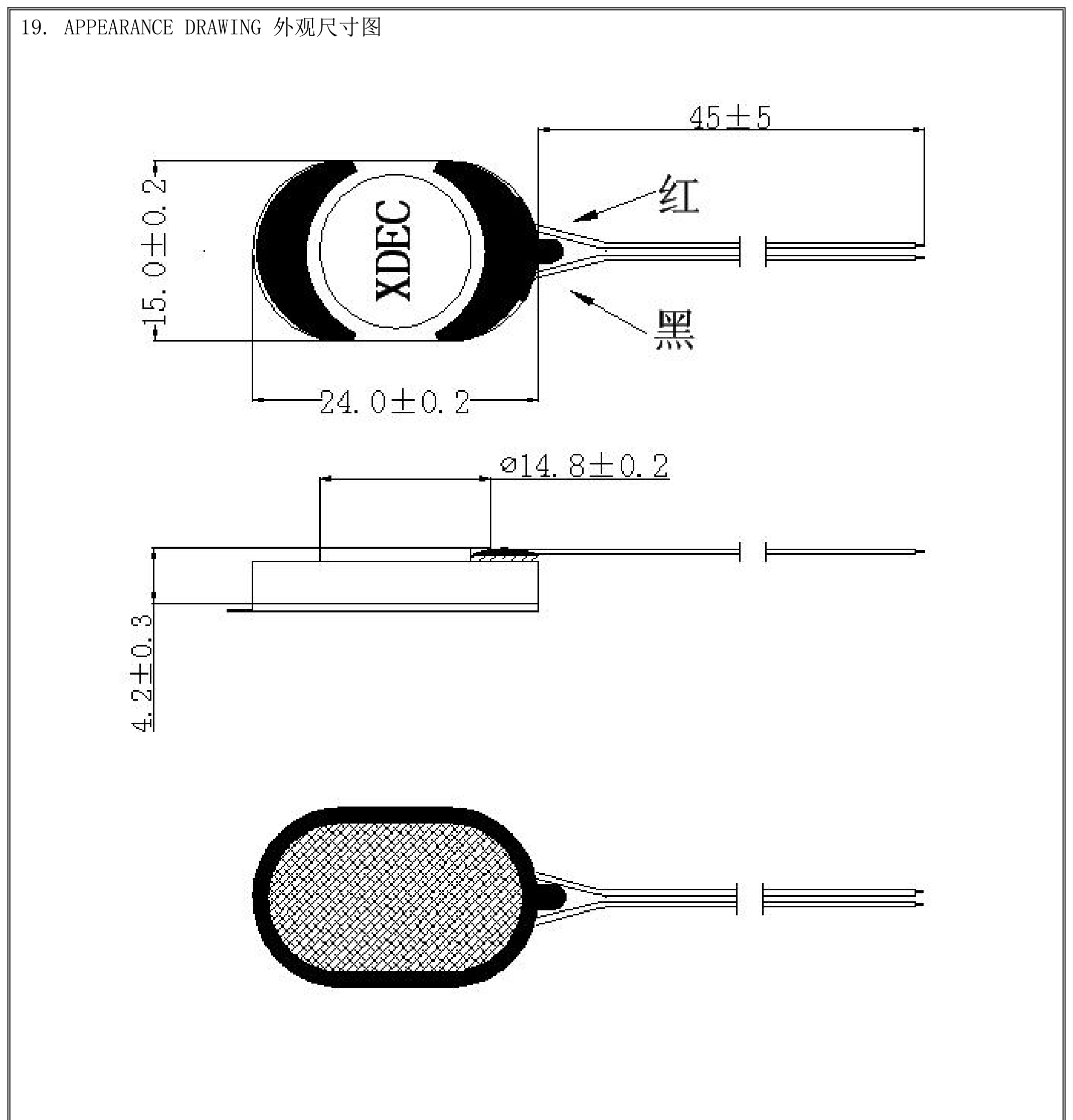

Dimensions24×15×4.2H mm
TerminationLead wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
E-readerHandheld DeviceSlim Display
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
