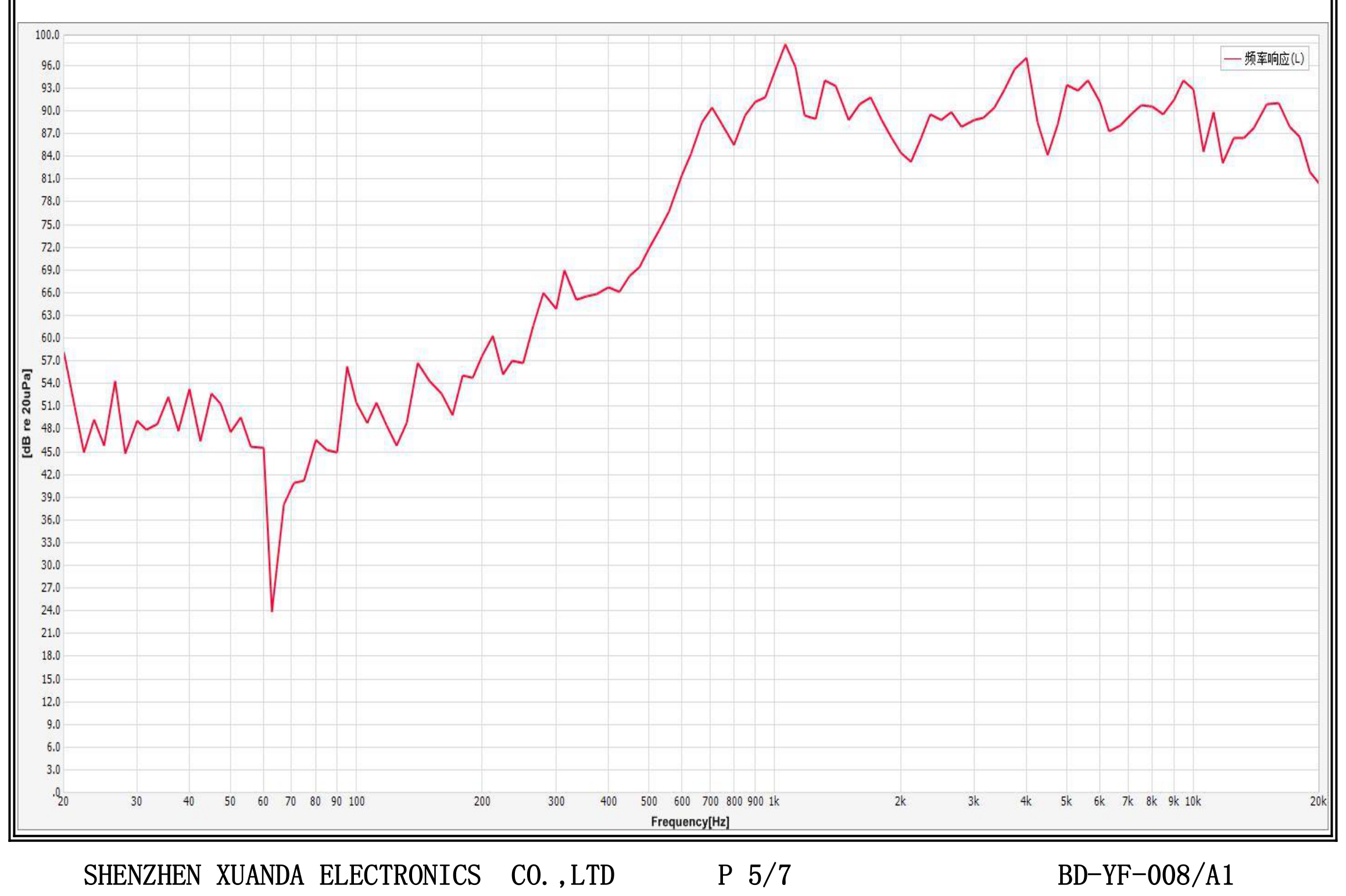

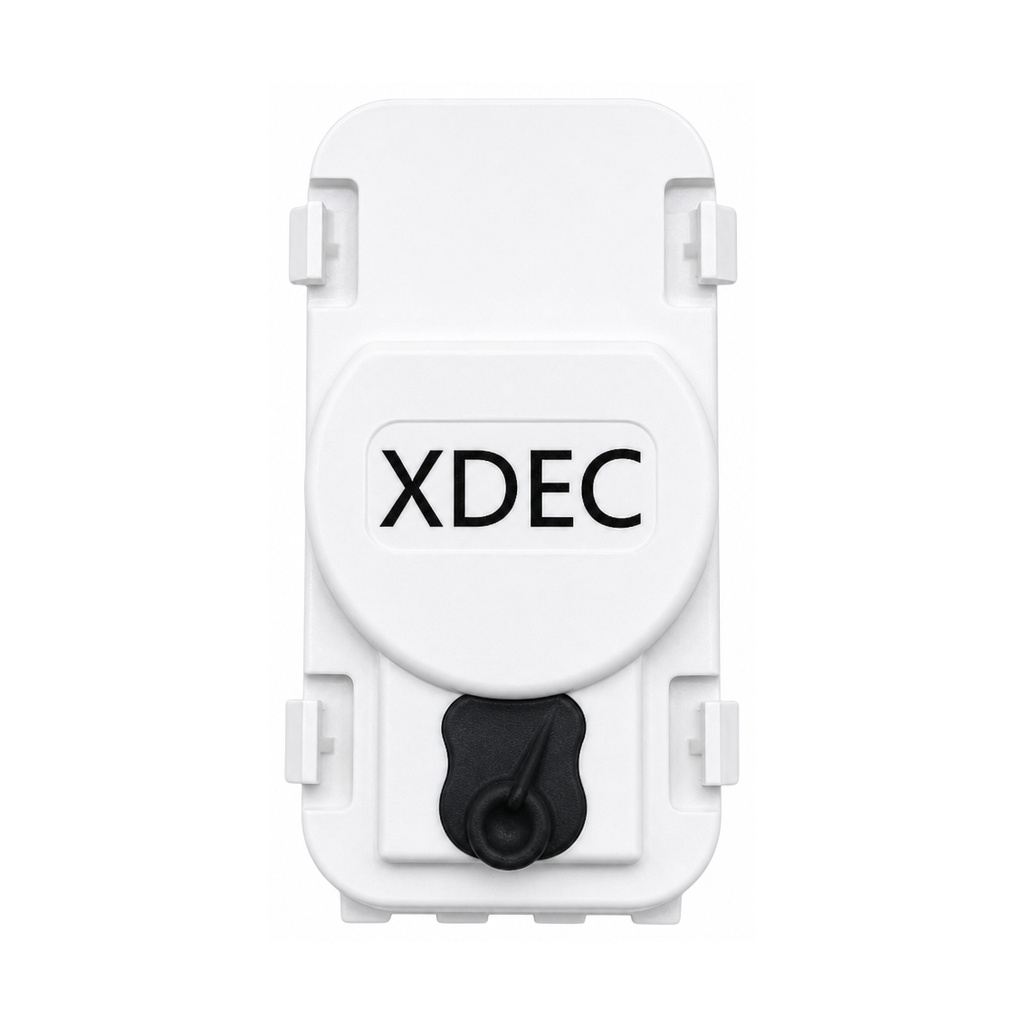

OverviewBackDimensionsFrequency Curve
MICRO SPEAKERS
XDEC-2040B08T21NE19-B17
Micro speaker driver, 20×40×5.6H mm, 8Ω 1W/1.5W, sensitivity 90±3dB, F0 1000Hz±20%. Typical applications: Handheld Device, Slim Display, Laptop. XDEC (Shenzhen, est. 2009…
8ΩRated Impedance
1W/1.5WPower
90±3dBSPL
1000HzF0
Rated Impedance8Ω
Rated / Max Power1W/1.5W
SPL90±3dB (0.1W/0.1m)
Resonance F01000Hz±20%
Frequency RangeF0~20kHz
Dimensions20×40×5.6H mm
TerminationSolder Pads
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Handheld DeviceSlim DisplayLaptop
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
