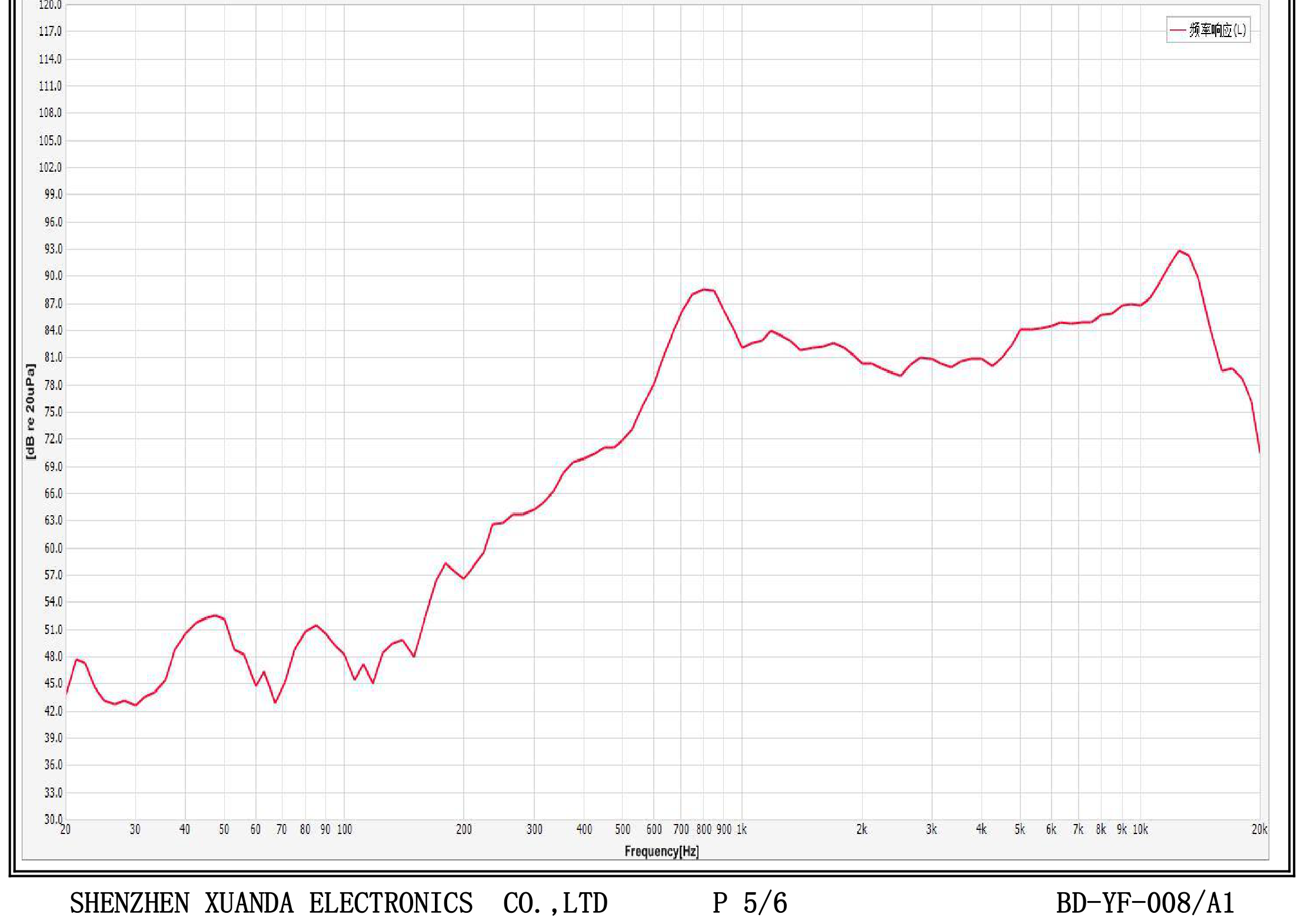

OverviewBackDimensionsFrequency Curve
MICRO SPEAKERS
XDEC-1609B08J24NC08-L25
Micro speaker driver, 16×9×3.3H mm, 8Ω 1W/1.2W, sensitivity 82±3dB, F0 900Hz±20%. Typical applications: Smart Watch, Ultra-thin Device, Portable Terminal. XDEC (Shenzhen,…
8ΩRated Impedance
1W/1.2WPower
82±3dBSPL
900HzF0
Rated Impedance8Ω
Rated / Max Power1W/1.2W
SPL82±3dB (0.1W/0.1m)
Resonance F0900Hz±20%
Frequency RangeF0~20kHz

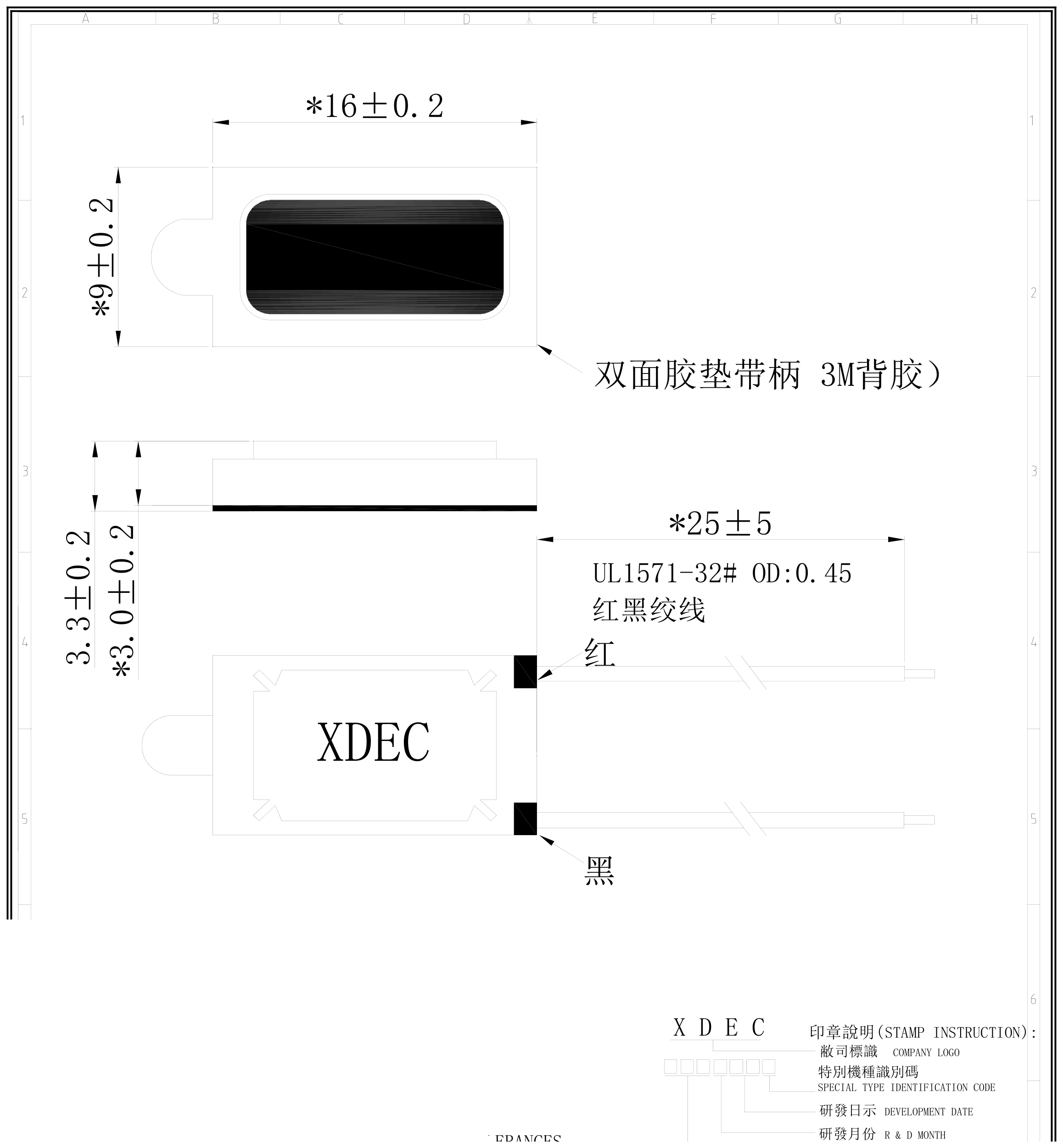

Dimensions16×9×3.3H mm
TerminationLead wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Smart WatchUltra-thin DevicePortable Terminal
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
