MICRO SPEAKERS
XDEC-3411B08J24ND09-D30
Micro speaker driver, 34×11×3.2H mm, 8Ω 1.5W/1.8W, sensitivity 84±3dB, F0 630Hz±20%. Typical applications: Smart Watch, Ultra-thin Device, Portable Terminal. XDEC (Shenzh…
8ΩRated Impedance
1.5W/1.8WPower
84±3dBSPL
630HzF0
Rated Impedance8Ω
Rated / Max Power1.5W/1.8W
SPL84±3dB (0.1W/0.1m)
Resonance F0630Hz±20%

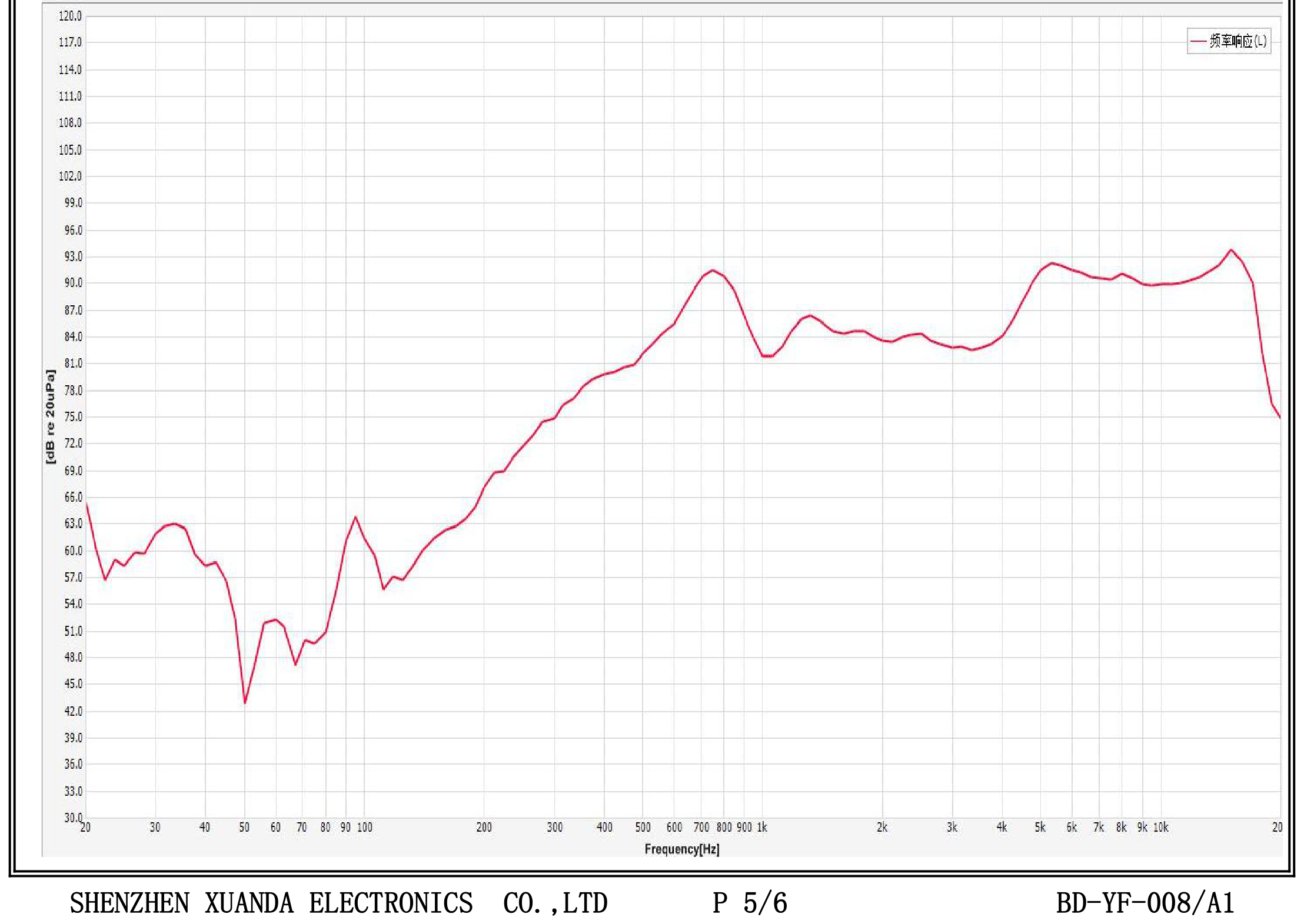

Frequency RangeF0~20kHz
Dimensions34×11×3.2H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Smart WatchUltra-thin DevicePortable Terminal
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
