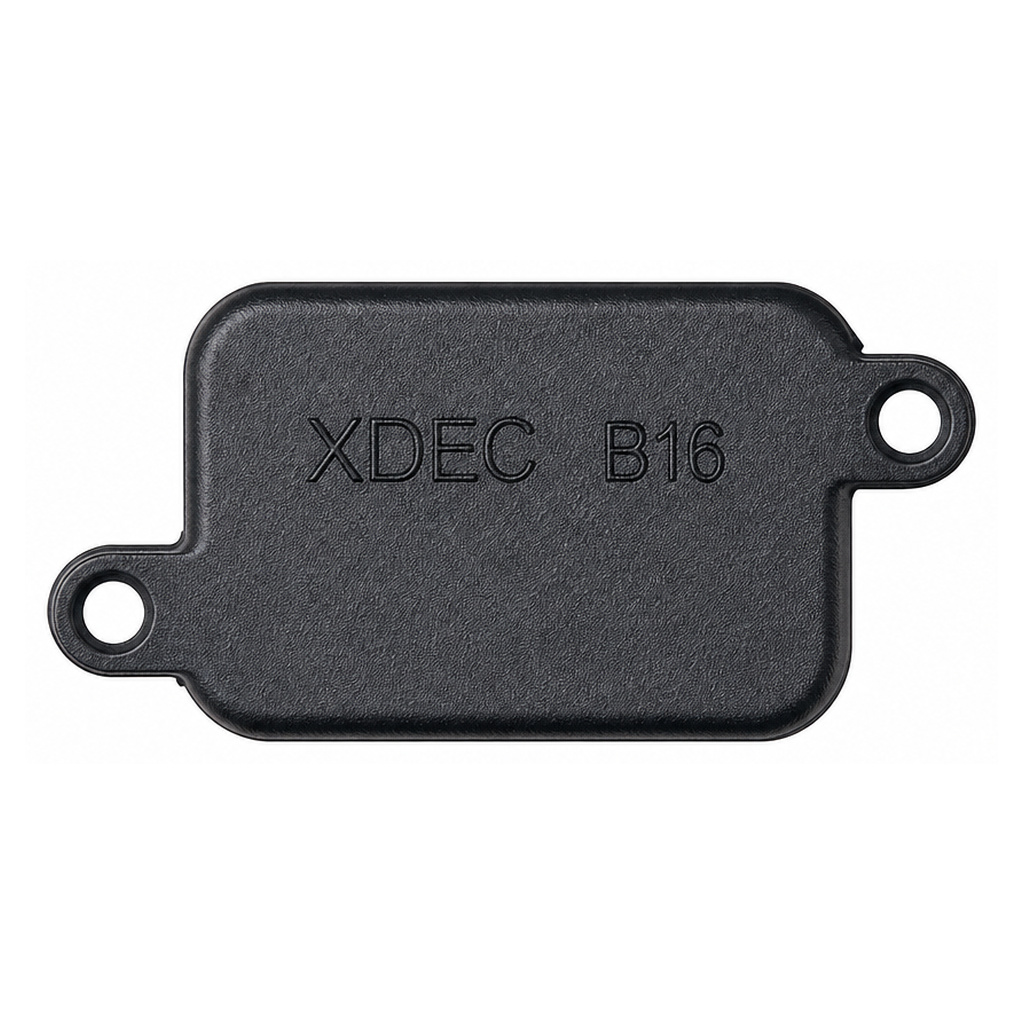

OverviewBackDimensionsFrequency Curve
CABINET SPEAKERS
XDEC-BOX1511B07J18NK23-D75
Cavity speaker module, 30×14×6.4H mm, 8Ω 0.8W/1W, sensitivity 85±3dB, F0 1200Hz±20%. Typical applications: Smart Lighting, EV Charger, Ceiling Speaker. XDEC (Shenzhen, es…
8ΩRated Impedance
0.8W/1WPower
85±3dBSPL
1200HzF0
Rated Impedance8Ω
Rated / Max Power0.8W/1W
SPL85±3dB (0.5W/0.5m)
Resonance F01200Hz±20%

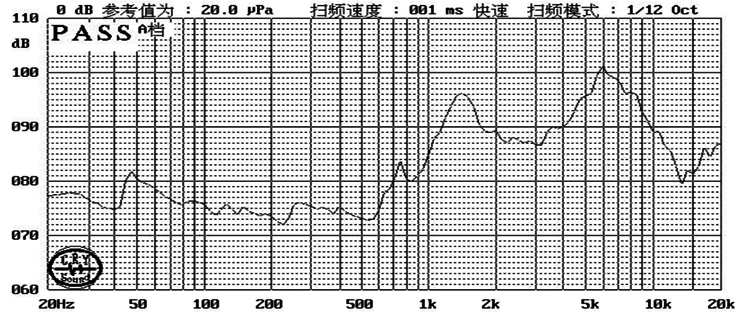

Frequency RangeF0~12kHz
Dimensions30×14×6.4H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Smart LightingEV ChargerCeiling Speaker
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
