CABINET SPEAKERS
XDEC-BOX24Y04J16NK08-D50
Cavity speaker module, 24×16.4H mm, 4Ω 2W/2.5W, sensitivity 78±3dB(0.5W/0.5M), F0 BOX:750±20%Hz. Typical applications: Public Display, Kiosk, Projector. XDEC (Shenzhen, e…
4ΩRated Impedance
2W/2.5WPower
78±3dB(0.5W/0.5M)SPL
BOX:750HzF0
Rated Impedance4Ω
Rated / Max Power2W/2.5W
SPL78±3dB(0.5W/0.5M)
Resonance F0BOX:750±20%Hz

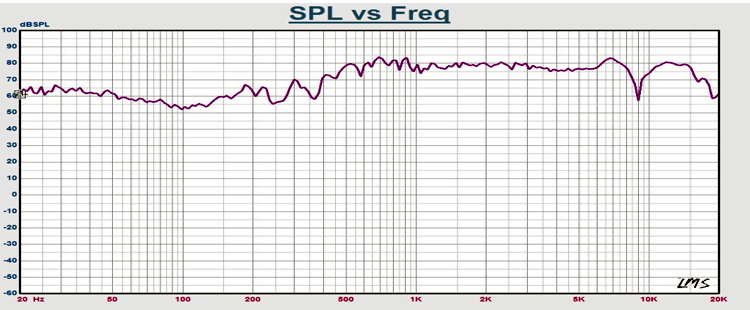

Frequency RangeF0~18K
Dimensions24×16.4H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Public DisplayKioskProjector
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
