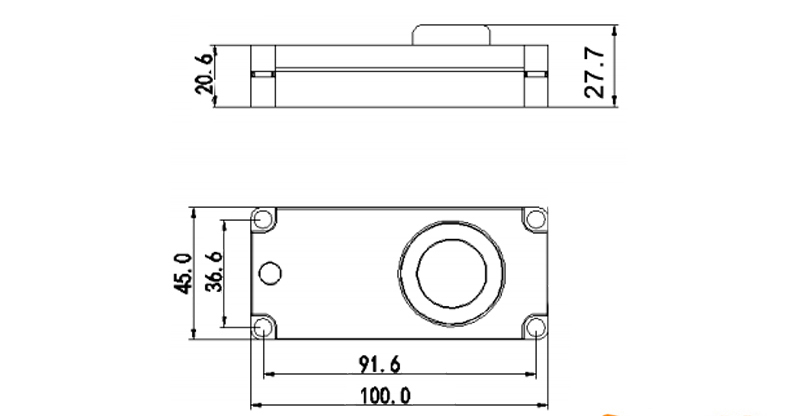

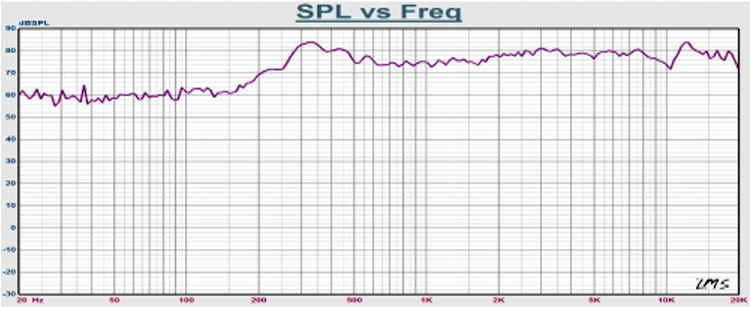

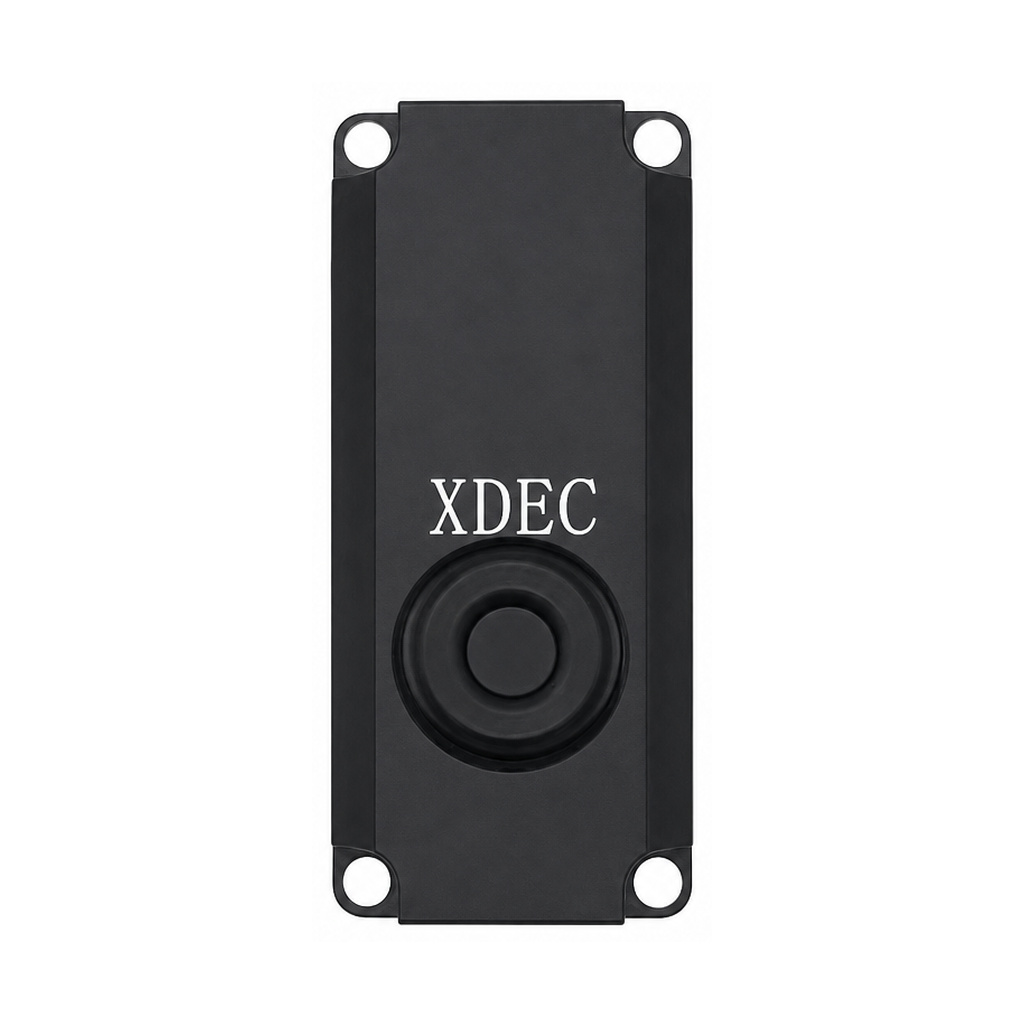

OverviewBackDimensionsFrequency Curve
CABINET SPEAKERS
XDEC-BOX40Y08T17ND09-D300
Cavity speaker module, 40×27.7H mm, 8Ω 10W/11W, sensitivity 74.5±3 dB(0.5W/0.5M), F0 FB240±20%Hz. Typical applications: Ceiling Speaker, Public Display, Kiosk. XDEC (Shen…
8ΩRated Impedance
10W/11WPower
74.5±3 dB(0.5W/0.5M)SPL
FB240HzF0
Rated Impedance8Ω
Rated / Max Power10W/11W
SPL74.5±3 dB(0.5W/0.5M)
Resonance F0FB240±20%Hz
Frequency RangeF0~20K
Dimensions40×27.7H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Ceiling SpeakerPublic DisplayKiosk
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
