CABINET SPEAKERS
XDEC-BOX2040B08J24NE13-D270
Cavity speaker module, 46×23×18.5H mm, 8Ω 2.5W/3W, sensitivity 93±3dB, F0 850Hz±20%. Typical applications: Smart TV, Smart Lighting, EV Charger. XDEC (Shenzhen, est. 2009…
8ΩRated Impedance
2.5W/3WPower
93±3dBSPL
850HzF0
Rated Impedance8Ω
Rated / Max Power2.5W/3W
SPL93±3dB (0.5W/0.5m)
Resonance F0850Hz±20%

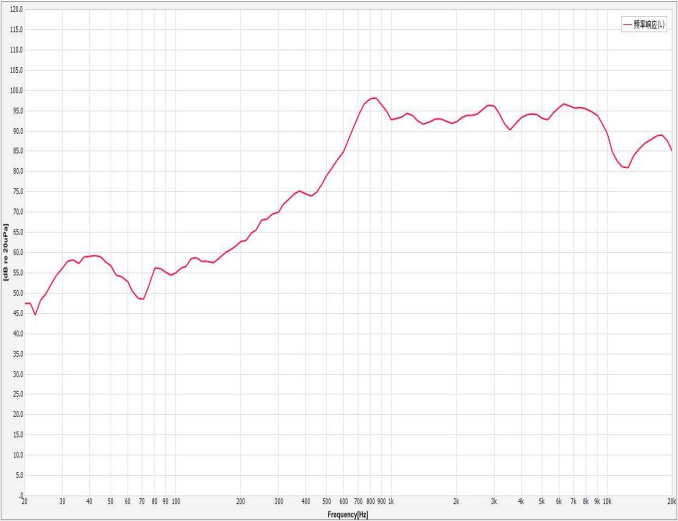

Frequency RangeF0~20kHz

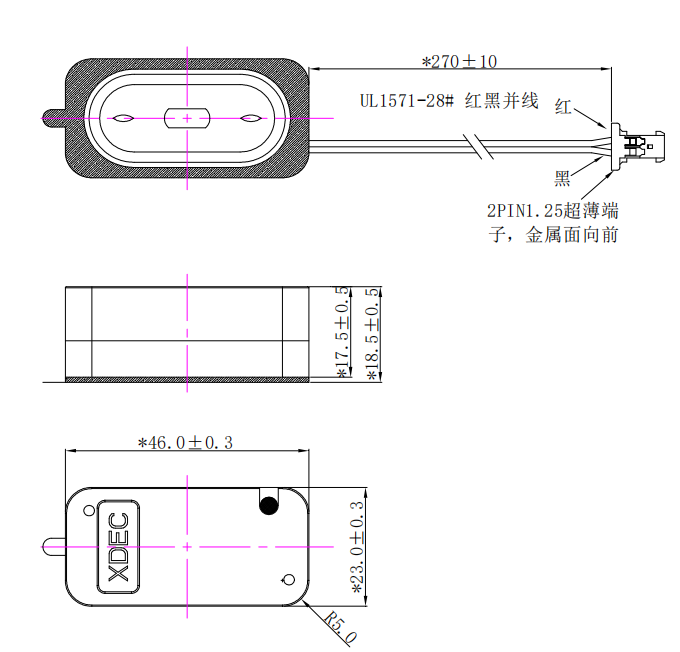

Dimensions46×23×18.5H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Smart TVSmart LightingEV Charger
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
