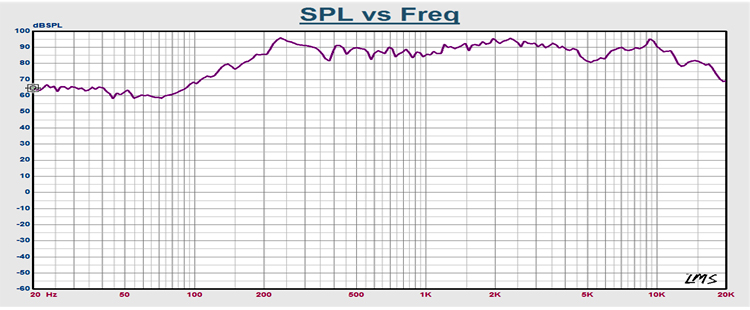

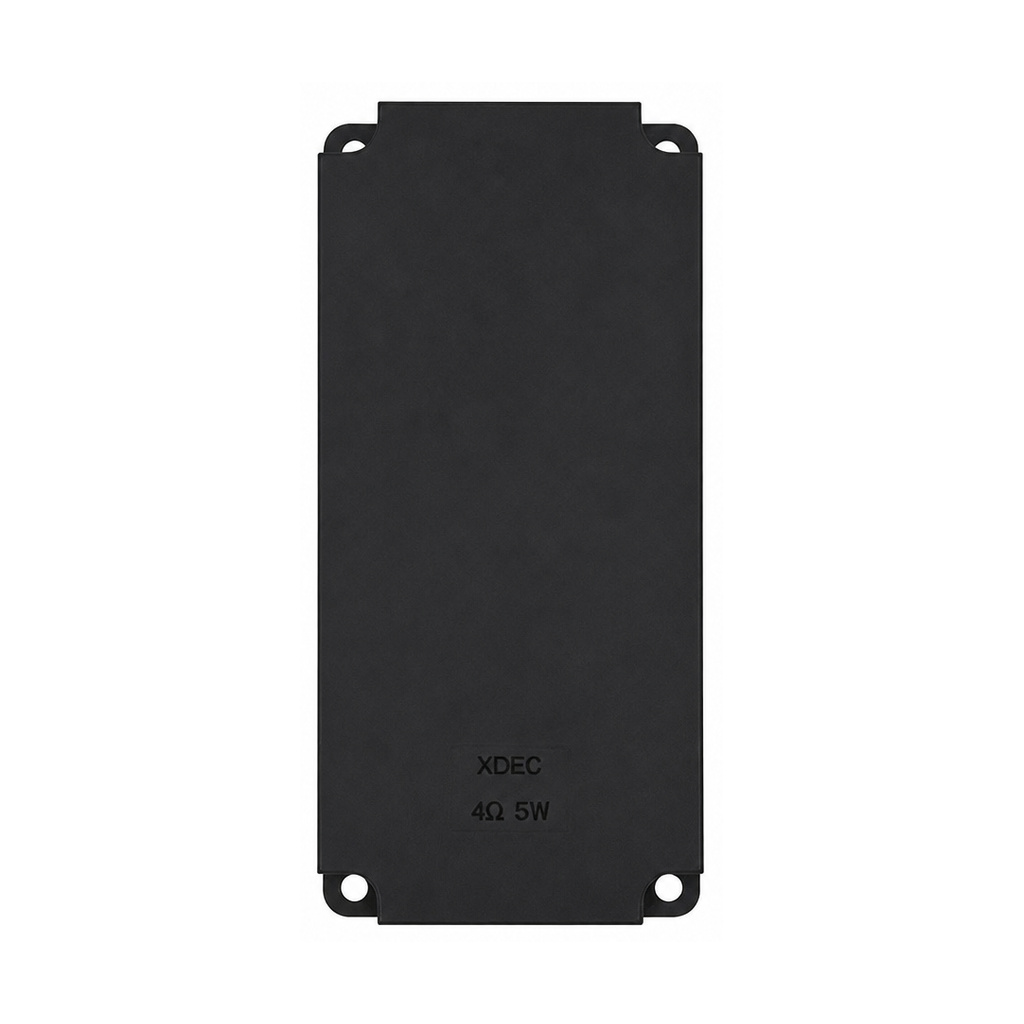

OverviewBackDimensionsFrequency Curve
CABINET SPEAKERS
XDEC-BOX50Y04T18NG16-D500
Cavity speaker module, 145×70×25H mm, 4Ω 5W/6W, sensitivity 83±3dB(0.5W/0.5M), F0 300±20%Hz（BOX）. Typical applications: Kiosk, Projector, Soundbar. XDEC (Shenzhen, est. 2…
4ΩRated Impedance
5W/6WPower
83±3dB(0.5W/0.5M)SPL
300Hz（BOX）F0
Rated Impedance4Ω
Rated / Max Power5W/6W
SPL83±3dB(0.5W/0.5M)
Resonance F0300±20%Hz（BOX）
Frequency RangeF0~20kHz

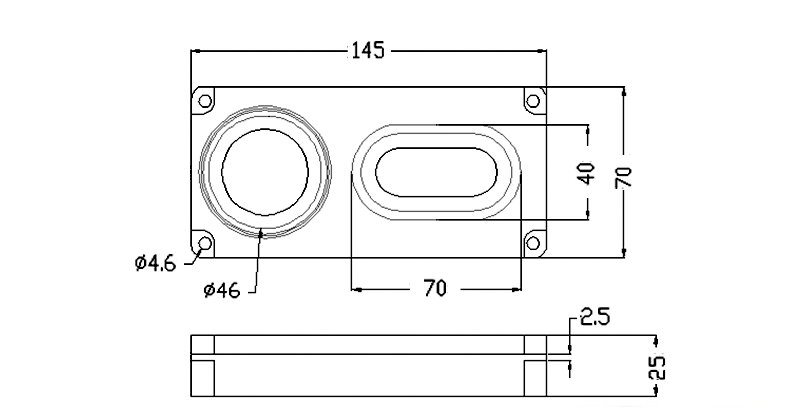

Dimensions145×70×25H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
KioskProjectorSoundbar
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
