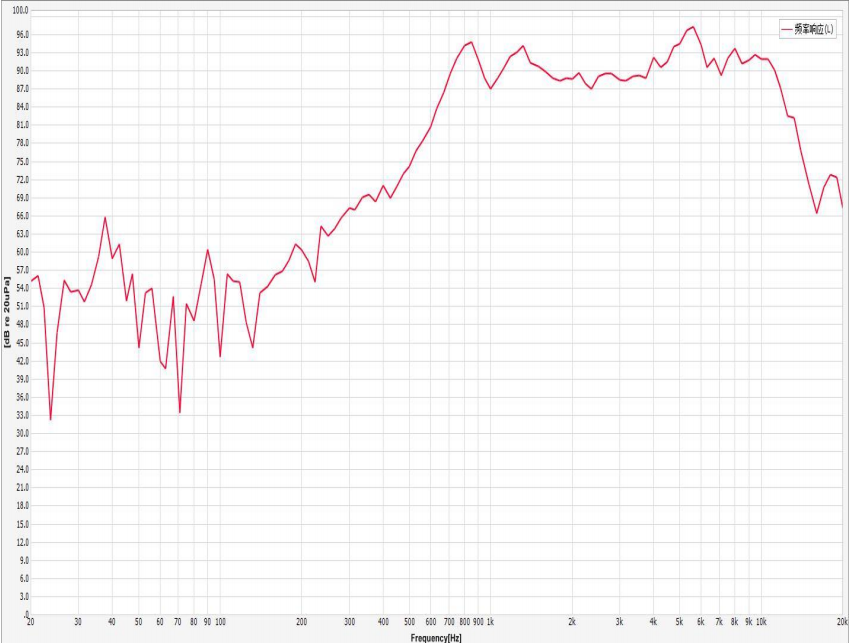

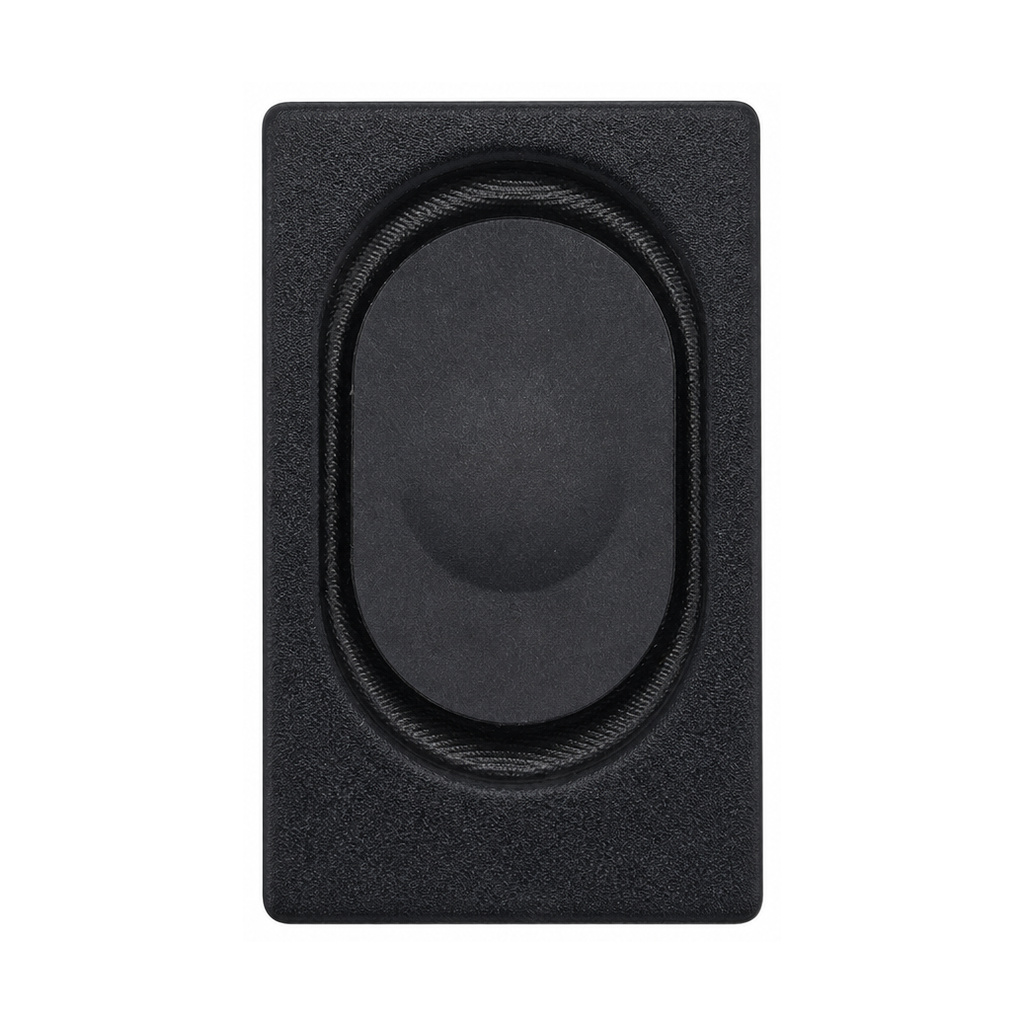

OverviewBackDimensionsFrequency Curve
CABINET SPEAKERS
XDEC-BOX2030B08J21NH31B-D100
Cavity speaker module, 32×22×10.8H mm, 8Ω 1.5W/2W, sensitivity 89±3dB, F0 FB：900Hz±20%. Typical applications: Smart TV, Smart Lighting, EV Charger. XDEC (Shenzhen, est. 2…
8ΩRated Impedance
1.5W/2WPower
89±3dBSPL
FB：900HzF0
Rated Impedance8Ω
Rated / Max Power1.5W/2W
SPL89±3dB (0.5W/0.5m)
Resonance F0FB：900Hz±20%
Frequency RangeF0~14kHz

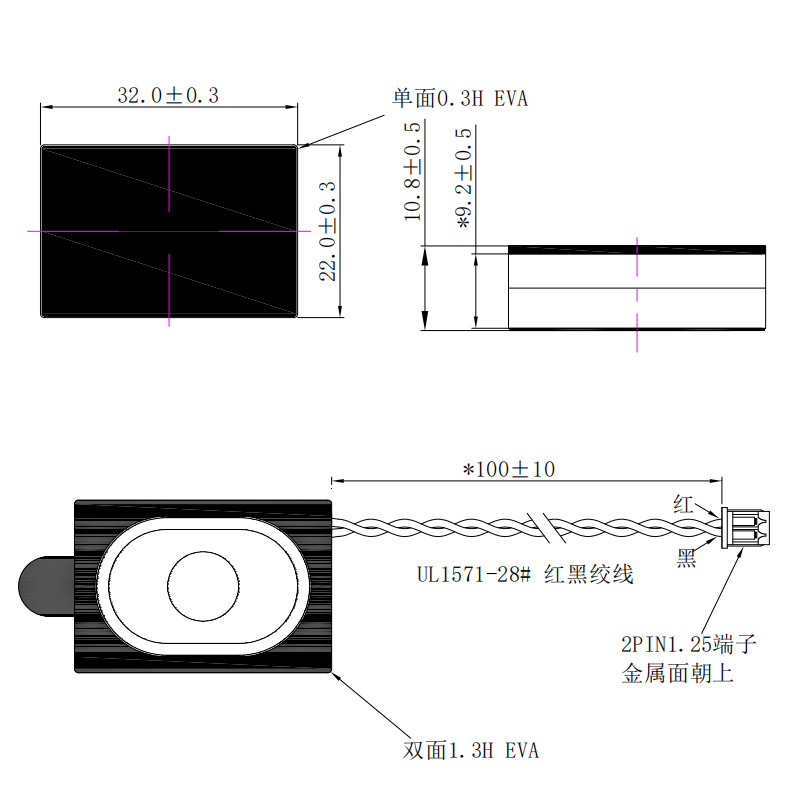

Dimensions32×22×10.8H mm
TerminationTab wire (custom length)
Pilot 500+ · MOQ 3,000 · Sampling 7–15 days · Specs subject to datasheet
Typical Applications
Smart TVSmart LightingEV Charger
Customization Options
Custom LogoCustom PackagingBulk OrderFast Sampling
